Still best in class and ahead of its time
- For medium and heavy duty commercial vehicles
- AUTOSAR based software
- Wide range of driving and auxiliary functions
- Energy and charging management
- Maintenance with Aladin Beyond
Key Benefits
Powertrain concept
Central Drive
Voltage level
400 – 800 V
Power range
150 - 390 kW
Isolation class
IP6K9K
Cyber Security
Following ISO 21434
Compliant (Functional Safety)
ISO 26262

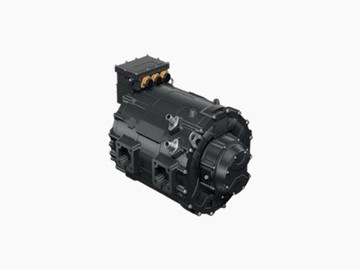

IPMS – Motor HD
- Peak. Torque: 3.100 Nm
- Peak. Power: 390 kW (30s) / 320 kW (30 min)
- Max. Speed: 3.800 rpm
- Max. Efficiency: 97.3%
- Weight motor: 315 kg
IPMS – Motor MD
- Peak. Torque: 2.850 Nm
- Peak. Power: 255 kW (30s) / 240 kW (30 min)
- Max. Speed: 2.500 rpm
- Max. Efficiency: 97.2%
- Weight motor: 260 kg
